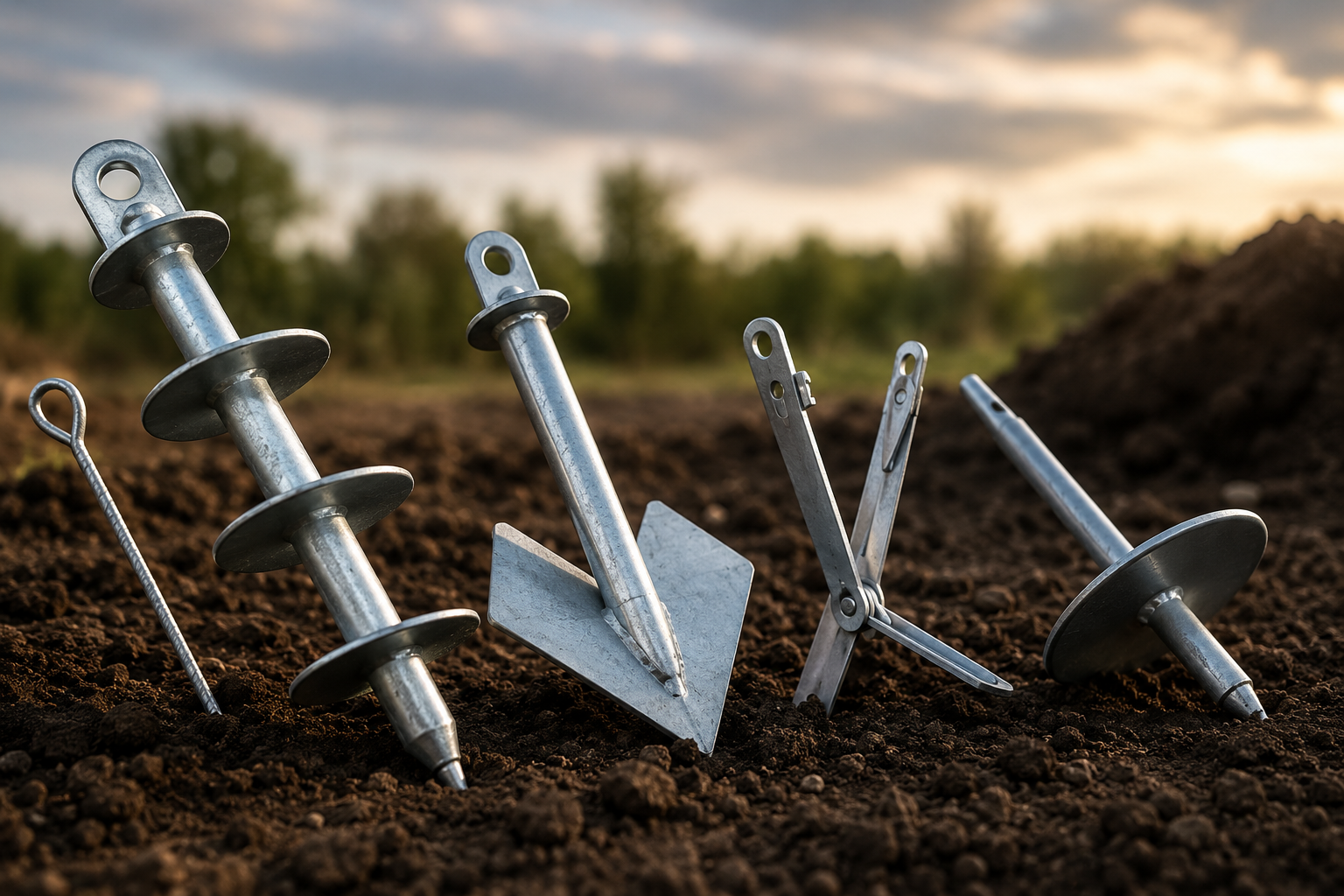

How Do Earth Anchors Work in Different Soil Conditions?

Earth anchors are one of the most effective solutions for securing structures, stabilizing retaining walls, supporting utility installations, and protecting mobile homes from wind uplift. However, the performance of an Earth Anchor System depends heavily on one critical factor: soil conditions.

Different soil types provide different levels of resistance and holding strength. Understanding how earth anchors perform in various soil conditions helps contractors, engineers, and property owners select the right Ground Anchoring System for maximum stability and long-term performance.

At B & R Stamping, we manufacture Earth Anchors, Load Lock Anchors, Arrowhead Anchors, and Ground Anchoring Systems designed to perform in a wide range of Canadian soil conditions.

Why Soil Conditions Matter for Earth Anchors

Earth anchors work by transferring loads into the surrounding soil. Once installed and activated, the anchor engages undisturbed soil beneath the surface, creating resistance against uplift, movement, and structural loads.

The denser and more stable the soil, the greater the anchor’s holding capacity. Softer soils may require deeper installation, larger anchors, or additional anchoring points to achieve the desired holding strength.

Factors that influence anchor performance include:

• Soil density
• Soil moisture content
• Soil composition
• Installation depth
• Groundwater conditions
• Environmental factors

Proper soil evaluation is essential before installing any Earth Anchor System.

Earth Anchors in Clay Soils

Clay soils are among the most common soil types used with ground anchoring systems. Dense clay provides excellent resistance and can generate strong holding capacity when anchors are properly installed.

Benefits of Clay Soils:

• High soil density
• Strong resistance to uplift
• Good long-term stability
• Excellent load-bearing characteristics

Challenges:

• Extremely hard clay may make installation more difficult.
• Clay can expand and contract with moisture changes.
• Frozen clay conditions may affect installation depth.

Load Lock Anchors and Arrowhead Anchors often perform exceptionally well in medium to dense clay conditions.

Earth Anchors in Sandy Soils

Sand provides less resistance than clay because individual particles do not bond together as tightly. However, properly installed Earth Anchors can still provide excellent performance in sandy environments.

Benefits of Sandy Soils:

• Easier installation
• Good drainage
• Reduced frost-related movement

Challenges:

• Lower holding capacity compared to dense clay
• May require deeper installation
• Loose sand can reduce anchor resistance

In sandy soils, anchor depth becomes particularly important to maximize holding strength and structural stability.

Earth Anchors in Gravel & Mixed Soils

Gravel and mixed soil conditions can provide excellent holding power when properly compacted. Many construction and infrastructure projects encounter gravel, sand, and clay mixtures.

Benefits of Gravel Soils:

• Strong load-bearing characteristics
• Good drainage
• Stable support conditions

Challenges:

• Large rocks may interfere with installation
• Installation depth may vary
• Soil consistency may differ across the site

Ground Anchoring Systems designed for mixed soils can provide reliable performance when soil conditions are properly evaluated before installation.

Earth Anchors in Rocky Soil Conditions

Rocky ground presents unique installation challenges. Standard Earth Anchors may encounter difficulties penetrating heavy rock formations or bedrock.

In these conditions, specialized solutions such as:

• X Model Anchors
• Expansion Anchors
• Rock Anchors
• Custom Ground Anchoring Systems

may be required.

B & R Stamping’s X Model Anchor is specifically designed for loose heavy rock conditions where traditional earth anchors may not provide adequate performance.

Benefits:

• High resistance levels
• Excellent long-term stability

Challenges:

• Difficult installation
• May require specialized anchoring systems
• Increased installation time

Earth Anchors in Soft Soil Conditions

Soft soils include:

• Wet clay
• Silt
• Fill material
• Organic soils
• Marsh conditions

These soils typically provide the lowest holding capacity and often require special consideration during anchor design and installation.

Challenges include:

• Reduced soil resistance
• Lower holding strength
• Increased installation depth requirements
• Greater susceptibility to movement

In softer soils, additional anchors or larger anchoring systems may be required to achieve desired load capacities.

Understanding Soil Classifications

Anchor performance is often evaluated using soil classifications.

Typical classifications include:

Class 1 Soil

Solid bedrock and concrete surfaces.

Class 2 Soil

Dense clay, compact gravel, sandstone, and laminated rock.

Class 3 Soil

Shale, hardpan, and compact clay-gravel mixtures.

Class 4 Soil

Gravel, claypan, and compact sand mixtures.

Class 5 Soil

Medium clay, loose gravel, and compact coarse sand.

Class 6 Soil

Soft clay, loose coarse sand, and clay-silt mixtures.

Class 7 Soil

Fill material, wet clay, and loose fine sand.

Class 8 Soil

Swamp conditions, saturated silt, and organic soils.

The soil classification helps determine the correct anchor type, installation depth, and expected holding capacity.

How Soil Testing Improves Anchor Performance

Before installing Earth Anchor Systems, soil testing helps determine:

• Soil consistency
• Density
• Moisture content
• Load-bearing capacity
• Installation depth requirements

One common method is using a torque probe, which measures underground soil resistance and helps determine the most suitable anchoring solution for the site.

Proper soil testing helps maximize holding power and reduce installation risks.

Choosing the Right Earth Anchor for Your Soil Conditions

Different projects require different anchoring solutions.

Load Lock Anchors

Ideal for medium-density soils and applications requiring high holding power.

Arrowhead Anchors

Suitable for mobile homes, sheds, utility structures, and general anchoring applications.

X Model Anchors

Designed specifically for loose heavy rock conditions.

Embankment Control Anchors

Used for retaining walls, slope stabilization, and infrastructure projects.

Selecting the correct anchor system based on soil conditions helps improve safety, structural stability, and long-term performance.

Why Contractors Trust B & R Stamping

For more than 35 years, B & R Stamping has manufactured Earth Anchor Systems, Ground Anchoring Systems, Load Lock Anchors, Arrowhead Anchors, Frame Ties, and Structural Support Products for customers across Canada.

Our experience with Canadian soil conditions allows us to provide anchoring solutions designed for:

• Mobile Homes
• Modular Buildings
• Retaining Walls
• Infrastructure Projects
• Utility Installations
• Industrial Facilities
• Ground Stabilization Systems

We help customers select the right anchoring solution for their specific project requirements and soil conditions.

Conclusion

Earth anchors can provide exceptional holding power and structural stability, but their effectiveness depends heavily on soil conditions. Understanding how anchors perform in clay, sand, gravel, rock, and soft soils helps ensure proper installation and long-term performance.

Whether you are securing a mobile home, stabilizing a retaining wall, or supporting an infrastructure project, choosing the correct Earth Anchor System for your soil conditions is essential for safety and reliability.

B & R Stamping manufactures high-quality Earth Anchors, Load Lock Anchors, Arrowhead Anchors, and Ground Anchoring Systems designed to perform in a wide range of soil environments across Canada.
